Ocular Counter Roll

16 February 2022
10 mins
Reading

What is the ocular counter roll test?

The ocular counter roll test is a clinical test to assess otolith function, which takes advantage of a torsional eye tracking algorithm. The test is done with video recording, so it is referred to as a video Ocular Counter Roll (vOCR) test. When the head is tilted, the eyes react with a torsional counter roll. This is a called an ocular counter roll (OCR), which is initiated by the vestibulo-ocular reflex (VOR).



Calibration

To perform the test, you should first calibrate the Torsion eye tracker. This allows the algorithm to identify the iris and track the movements of the eyeball.

First, select the Ocular Counter Roll protocol from the test menu.

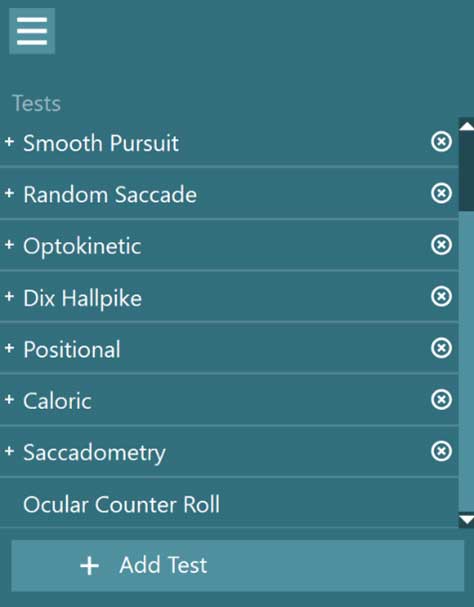

List of tests, including smooth pursuit, random saccade, optokinetic, Dix Hallpike, positional, caloric, saccadometry, and ocular counter roll.

Figure 1 – Test menu

Then select the calibration option.

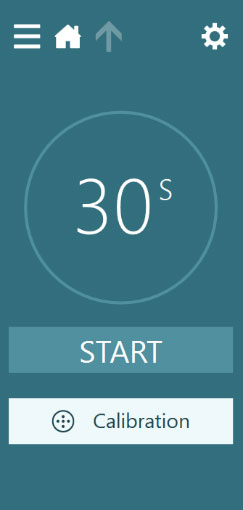

Figure 2 – Calibration selection

Once in the calibration menu, you can perform 2 tasks:

  1. Calibrate the Torsion tracker
  2. Calibrate the eyes to the TV monitor

First, calibrate the Torsion tracker. You can use the Auto Detect button to find the appropriate iris area for tracking. If the white tracking circles are not encompassing enough of the iris, you can use the manual slider adjust bars to make small adjustments.

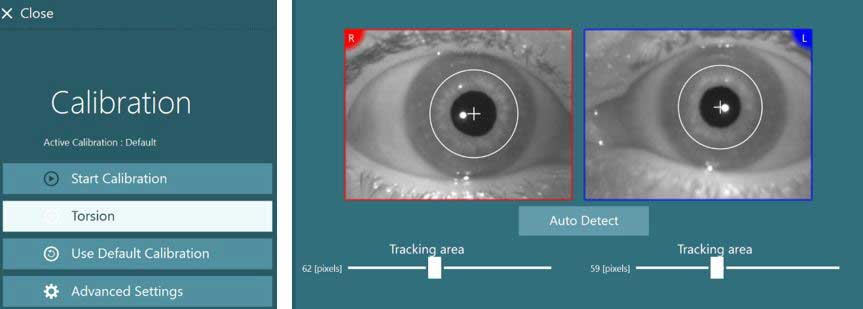

Calibration screen for torsional eye tracking. A list of options to the left, including start calibration, torsion, use default calibration, and advanced settings. Video images of the right and left eyes to the right. For both eyes, the software displays a white cross at the center of the pupil, which is encircled by a white circle. The tracking area for the right eye is set to 62 pixels. The tracking area for the left eye is set to 59 pixels.

Figure 3 – Calibrate torsion tracker

When you are satisfied that the tracker is stable around the eyes, then use the Set Reference button to finish the calibration.

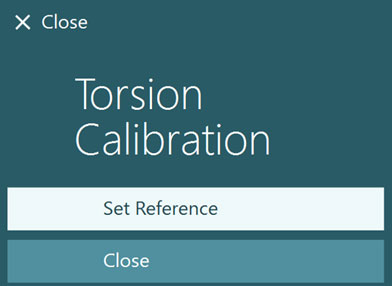

Figure 4 – Set torsion reference

Next, calibrate the eyes to the TV monitor (if this has not been already completed for other oculomotor tests). Instruct the patient to sequentially look at each of the five dots. The test will automatically stop when the calibration is completed.

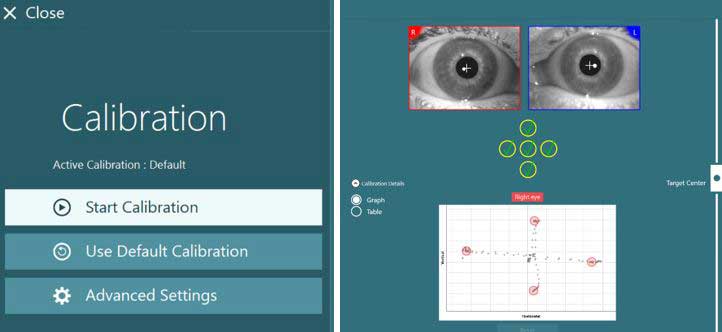

Video eye calibration screen. A list of options to the left, including start calibration, use default calibration, and advanced settings. Video images of the right and left eyes to the right. For both eyes, the software displays a white cross at the center of the pupil. The calibration is complete, visible by green checkmarks in the left, up, right, down, and center positions. Also visible in a graph below, where the clusters of eye positions are almost perpendicular to the center position.

Figure 5 – Video eye calibration



Performing the test

Once the system is calibrated, you are ready to begin testing. The TV screen will have a solid background and a white center fixation dot. Have the patient look at the white dot with the head centered and hold there for a minimum of 10 seconds. Press the enter key on the remote to mark the next section and then rotate their head and shoulders 30 degrees to the left.

When you are in the correct 30-degree position, hold there for a minimum of 10 seconds. Press the enter key again and bring the patient back to the center. Hold there another minimum of 10 seconds. Press the enter key again and rotate the head and shoulders 30 degrees to the right and again hold there for a minimum of 10 seconds. This is called a static ocular counter roll test because the patient’s head is held still in each position.

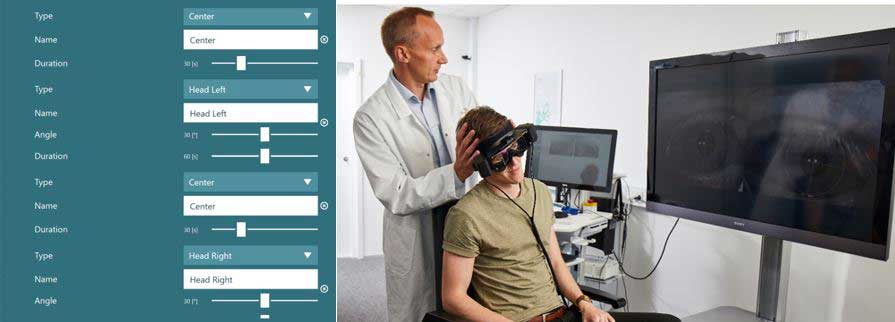

Male clinician stood behind male patient, holding the patient’s head in a 30-degree angle to the right.

Figure 6 – Positioning the patient

If you have a VORTEQ Sensor, then you can use the 3D head model to guide you in properly positioning the head and shoulders to the proper angle. The default angle is 30 degrees.

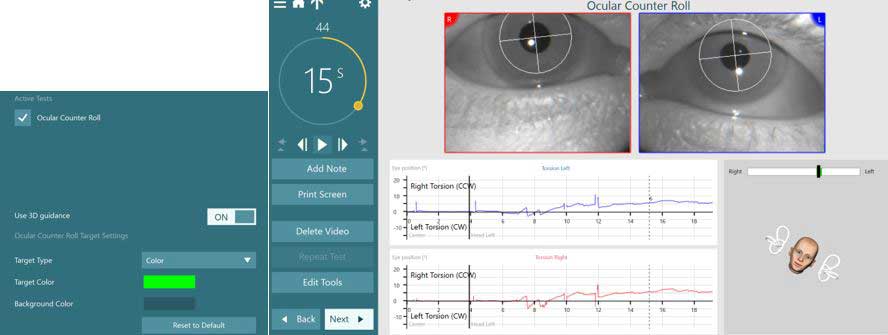

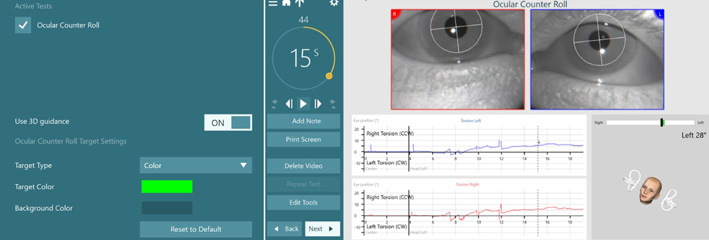

Real time 3d representation of the patient’s head. A black, solid line indicates the patient’s head angle, with a green shaded, correct region the head angle needs to reach. The head is in a correct, 30-degree angle toward the left.

Figure 7 – VORTEQ sensor and 3D head model guidance



Results

In the results section, you will see the eye position (in degrees) for left and right head tilts.

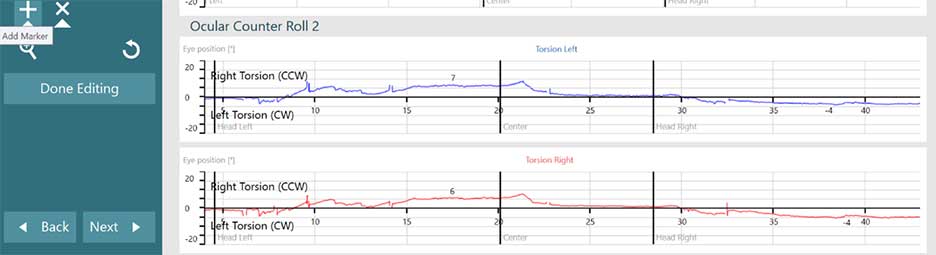

Two graphs for the left and right eyes, with eye position displayed for head left, center, and head right. For both eyes, there is a slight right torsion when the head is tilted to the left, and a slight left torsion when the head is tilted to the right.

Figure 8 – Graphical display of ocular counter roll test results

You can measure the degree of torsion using the edit functions to add in numerical values. The ocular counter roll slow phase movement is plotted. When the head is tilted to the left shoulder, you will see a right slow torsion counterclockwise (to the examiner) eye movement. When the head is tilted to the right shoulder, you will see a slow torsion left in the clockwise direction.

In the static ocular counter roll test, we are only interested in the final position of the eye. This is represented as the flat area where the eye is still (static) after the head is held in position for at least 10 seconds. The dynamic eye movements during the head movements are not analyzed.

For further assistance, if needed, please refer to the Instructions for Use and Additional Information manuals.
