5 key benefits of the Eclipse Aided Cortical module

23 September 2024

In September, we were happy to announce the Aided Cortical module for the Interacoustics Eclipse, which helps you validate the benefit of a hearing device in infants, children, adults and other patients with complex needs, by presenting speech-like stimuli while they are wearing their hearing device.

To help you understand how this new module works and how it can deliver value in your clinic, let’s dive into five key benefits.



1. Sound Field Analyzer

With the Sound Field Analyzer in the Aided Cortical software, it is possible to compensate for any physical changes that might have occurred in the test room between individual tests.

The sound field analysis compares the current sound field characteristics with the characteristics measured at the calibration. If you measure differences in the characteristics (Figure 1), then the Sound Field Analyzer compensates for the measured differences when presenting stimuli (Figure 2).

The sound field analysis only takes a few seconds to perform, and it allows you to ensure correct stimuli presentation in the free field setup.

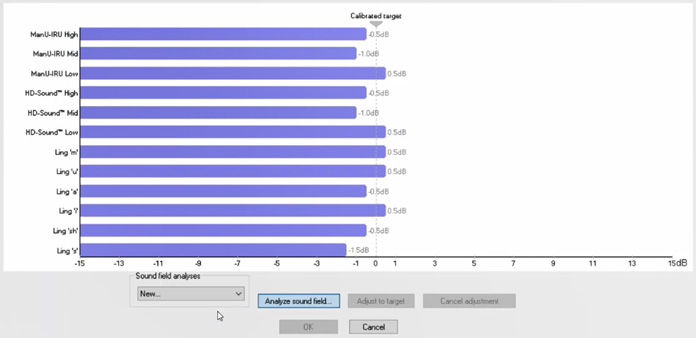

The following states the difference in dB to the calibrated target for each stimuli. ManU-IRU High is minus 0.5 dB. ManU-IRU Mid is minus 1.0 dB. ManU-IRU Low is 0.5 dB. HD-Sound High is minus 0.5 dB. HD-Sound Mid is minus 1.0 dB. HD-Sound Low is 0.5 dB. Ling m is 0.5 dB. Ling u is 0.5 dB. Ling a is minus 0.5 dB. Ling i is 0.5 dB. Ling sh is minus 0.5 dB. Ling s is minus 1.5 dB.
Figure 1: Example of measured difference to calibrated target.

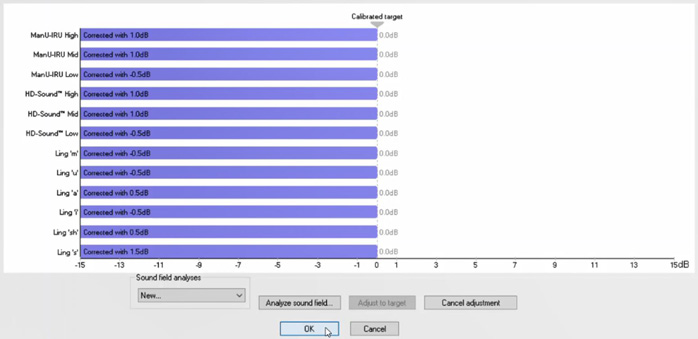

The following states the difference in dB to the calibrated target for each stimuli. ManU-IRU High is 0.0 dB. ManU-IRU Mid is 0.0 dB. ManU-IRU Low is 0.0 dB. HD-Sound High is 0.0 dB. HD-Sound Mid is 0.0 dB. HD-Sound Low is 0.0 dB. Ling m is 0.0 dB. Ling u is 0.0 dB. Ling a is 0.0 dB. Ling i is 0.0 dB. Ling sh is 0.0 dB. Ling s is 0.0 dB.
Figure 2: Adjustment to calibrated target.



2. Fmpi detector

The Fmpi detector in the Aided Cortical module indicates whether there is a response in the recording, guiding the clinician during the test. The detector value is displayed as a percentage indicating the response confidence. The response confidence target can be set at either 95% or 99% as a stop criterion (Figure 3).



Figure 3: Response confidence target set at 95% with a reached level of 99.75%.



Since the Fmpi detector employs more points in the noise calculation and estimates the noise properties from the individual recording, you can achieve a detection faster.



3. ManU-IRU stimuli

Developed and validated in collaboration between Manchester University and the Interacoustics Research Unit (IRU), the ManU-IRU stimuli are frequency-specific stimuli designed to represent typical speech sounds – ideal for aided cortical testing [1][2].

The ManU-IRU stimuli set consists of three different speech-like stimuli, stimulating the low, medium and high frequencies. By being presented with reference to the International Speech Test Signal (ISTS), this allows the clinician to test the patient’s ability to hear regular speech (Figure 4).

Two other sets of stimuli are available with the Eclipse Aided Cortical module: HD-Sounds developed by Harvey Dillon, Ph.D., and the LING sounds.

Read more: Which stimuli should be used for aided cortical testing?

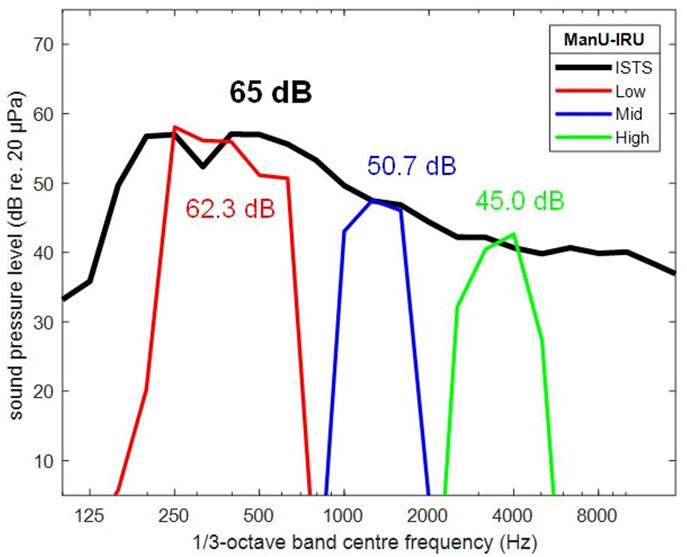

Graph with sound pressure level as a function of frequency in Hz. There is a black curve for the ISTS signal, a red curve for the ManU-IRU Low stimulus, a blue curve for the ManU-IRU Mid stimulus, and a green curve for the ManU-IRU High stimulus. The graph displays a good alignment between the sound pressure level and frequency content of the ISTS and the ManU-IRU Low, ManU-IRU Mid, and ManU-IRU High stimuli.
Figure 4: Correlation between the International Speech Test Signal (ISTS) and the ManU-IRU stimuli.



4. Bayesian weighting

As with the rest of the software modules available with the Eclipse, the Aided Cortical module offers Bayesian weighted averaging. This functionality treats recordings containing less noise with higher importance in the detection of a response compared to recordings that contain more noise.

Bayesian weighting ensures the noise in a recording does not increase during the recording, which reduces the importance of having the patient being relaxed at all times. This can be a huge time-saving benefit as patients are awake and usually sitting up during aided cortical testing.

You can learn more about Bayesian weighting in the video below.





5. Organized overview of the test results

The automatically generated report in the Aided Cortical module gives a complete and organized overview of the test results – including results from previous sessions when using the ‘add to current session’ feature.

The report updates after each measurement, providing you with all the relevant clinical details including response label, detector value and more (Figure 5).

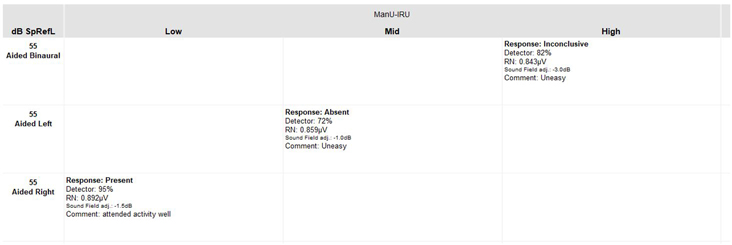

Matrix with measurement type in the left column and stimuli used in the top column. Following results for Aided Right using the ManU-IRU Low stimulus: Response is present. Response confidence of 95%. RN of 0.892 microvolts. Sound field adjustment of minus 1.5 dB. Comment that the patient attented the activity well. Following results for Aided Left using the ManU-IRU Mid stimulus: Response is absent. Response confidence of 72%. RN of 0.859 microvolts. Sound field adjustment of minus 1.0 dB. Comment that the patient was uneasy. Following results for Aided Binaural using the ManU-IRU High stimulus: Response is inconclusive. Response confidence of 82%. RN of 0.843 microvolts. Sound field adjustment of minus 3.0 dB. Comment that the patient was uneasy.
Figure 5: Aided Cortical report screen.



Learn more about the Aided Cortical module

These were some of the key benefits of the Aided Cortical module, and we hope you can see how adding this hearing device validation test could add value to your clinical flows.

Explore the Aided Cortical module to discover even more benefits!



Related online training

On November 19, 2024, Amanda Goodhew, BSc (Hons) MSc Audiology, from the Interacoustics Academy, will host an eWorkshop on aided cortical testing. This eWorkshop will provide an introduction to aided cortical testing with a particular focus on the pediatric application of the test.

The tools available to ensure accurate testing conditions and detection of responses will be discussed, as well as how to achieve the best patient state and develop the most suitable testing strategy for each individual patient.

Learning objectives:

  • Explain the clinical need and benefit of aided cortical testing for the pediatric patient group
  • Describe how to prepare for and perform an aided cortical measurement
  • Determine an appropriate testing strategy for aided cortical testing based on the patient’s expected audibility

When? November 19, 10.00-11.30 / 16.00-17.30 CET.



References

[1] Visram, A. S., Stone, M. A., Purdy, S. C., Bell, S. L., Brooks, J., Bruce, I. A., Chesnaye, M. A., Dillon, H., Harte, J. M., Hudson, C. L., Laugesen, S., Morgan, R. E., O'Driscoll, M., Roberts, S. A., Roughley, A. J., Simpson, D., & Munro, K. J. (2023). Aided Cortical Auditory Evoked Potentials in Infants With Frequency-Specific Synthetic Speech Stimuli: Sensitivity, Repeatability, and Feasibility. Ear and hearing, 44(5), 1157–1172.

[2] Stone, M. A., Visram, A., Harte, J. M., & Munro, K. J. (2019). A Set of Time-and-Frequency-Localized Short-Duration Speech-Like Stimuli for Assessing Hearing-Aid Performance via Cortical Auditory-Evoked PotentialsTrends in hearing23, 2331216519885568.



About the authors

Morten Bagger, MSc International Marketing, graduated from the University of Southern Denmark in 2009. Morten has been the Senior Product Manager within ABR and OAE at Interacoustics since June 2018.

Rasmus Skipper, MSc Audiology, graduated from the University of Southern Denmark in 2020. Following two years of clinical practice at Odense University Hospital, Rasmus joined Interacoustics in April 2022 as Clinical Product Manager within ABR and OAE.
