Bluetooth Installation (Win XP)

11 June 2021
10 mins

The following Quick Guide has been created to assist with pairing the Interacoustics Titan to your Windows XP PC/laptop using Bluetooth.

Turn on the Titan Handheld Unit (HHU) and your Windows XP PC/laptop:

  1. Select Protocol | My Titan |Titan and change Bluetooth Connection to PC, by pressing the R or L button.

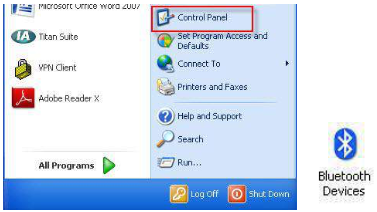

  2. Go to START | Control Panel and double click on the Bluetooth Icon:

  3. Click on Add. At the Welcome screen, press Next.

  4. Wait while the Wizard searches for your device. Select the Titan and click Next.

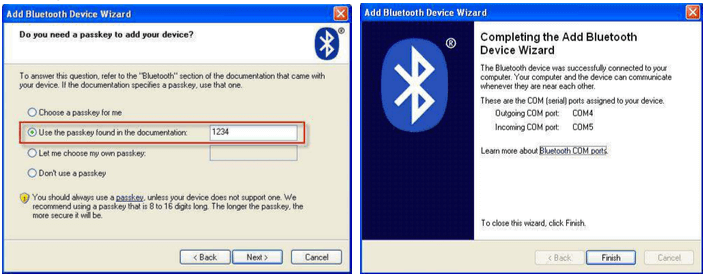

  5. Select Use the passkey found in the documentation and enter 1234. Click Next. The Titan and your PC are now connected via Bluetooth. Click Finish.

    To confirm the Bluetooth pairing, Start up the Titan Suite from OtoAccess, Noah or in Standalone mode (see the Titan Instructions for Use for further instruction). Ensure that the Titan is still switched on.

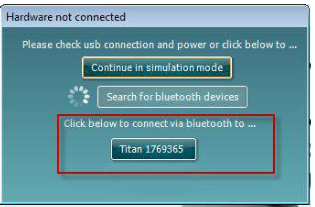

  6. Allow the Bluetooth device to search for the Titan. After a short while, your Titan with corresponding identification number will appear in the window below.

  7. Click on “Titan xxxxxx” and wait a few seconds to allow it to connect.

  8. On connection, the Suite will finish launching and the Titan HHU screen will show “PC-controlled”. Now the Titan can be operated from PC in the same way as if it was connected via a USB cable.

Note: If the Titan will not connect correctly and your PC has its manufacturer’s Bluetooth Driver installed, you may need to uninstall this and then try re-pairing the Titan with your PC.
